Product detailed description

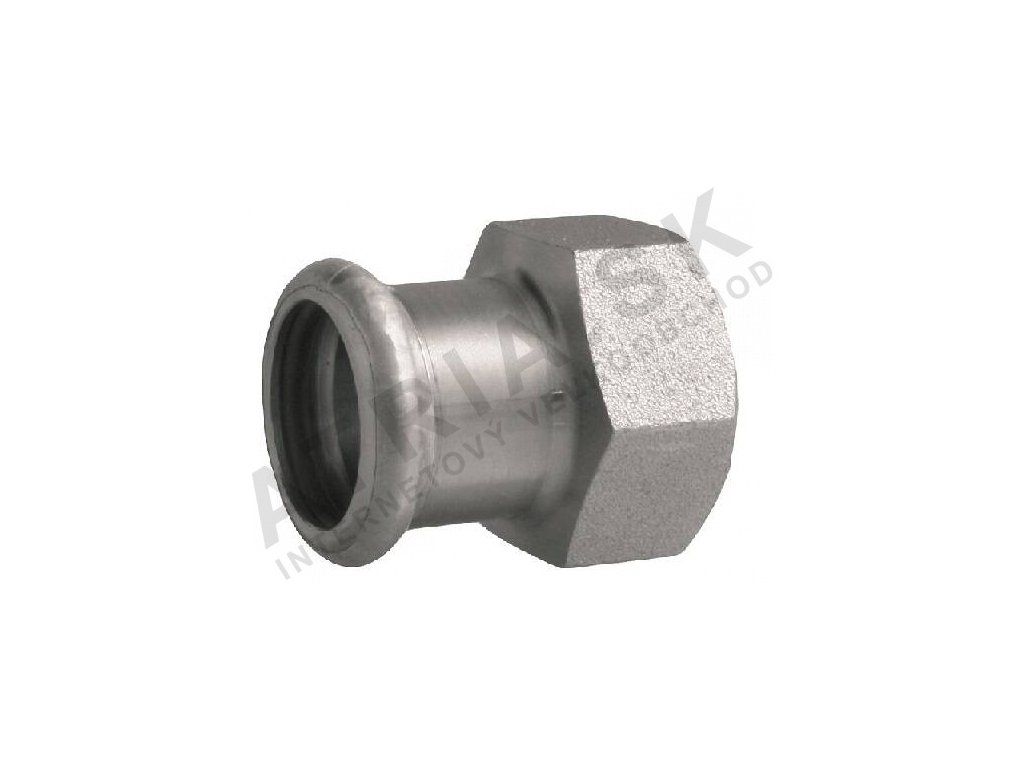

Grommet - internally threaded, IVAR.IVC80, size: 35 mm x Rp 5/4, packing: 10 pcs
- PN 16, T = -20 °C to +85 °C - max. +120 °C
- threaded PRESS x THREAD
- purpose of use: for heating systems, sprinkler permanently watered systems,
pressure dry air, inert gases and industry - material:carbon galvanized steel, O-ring - EPDM
- Compatible with M-type jaws
Note:
Contains no surface coating limiting agents, leakproof unless molded and with molding indicator up to 54mm.
Application Options:
- installation of central heating piping in a closed (pressurized) system
- installation of cold water and cooling piping
- installation of fire water piping
- installation of air conditioning piping
- installation of piping for solar systems
Benefits:
- fast and safe installation without welding and making threaded joints
- large range of pipe and fitting diameters from 15 mm up to 108 mm
- wide working temperature range -20 C to +180 C
- resistance to high pressures up to 16 bar
- possibility of combination with other systems
- low weight of pipes and fittings
- high aesthetics of installation
- resistance to mechanical damage
The pipe is not certified for drinking water.
Additional parameters
| Category: | IVAR.IVC80 - adapters - internally threaded |
|---|---|
| Warranty: | 2 roky |
| Weight: | 0.286 kg |
| Posledná aktuálizacia ceny: | 04.03.2025 0:17:59 |
