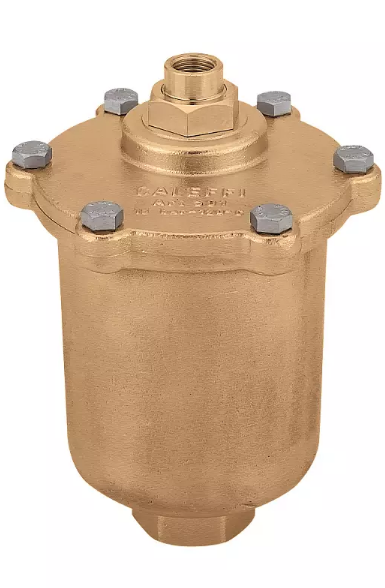

Automatic vent valve - 3/4 "x3/8" IVAR.MAXCAL 501

Product detailed description

Automatic air vent valves are essential components in closed-loop heating, sanitation and water supply systems. They are commonly installed in residential, commercial and industrial buildings where air accumulation can reduce system efficiency and cause operational issues. Technicians and installers use these valves to maintain hydraulic balance and ensure consistent flow rates. This model is suitable for systems requiring reliable air removal without manual intervention.

In multi-zone heating systems, such as underfloor heating or radiator circuits, automatic air vent valves help eliminate trapped air that can lead to noise, reduced heat transfer and uneven temperature distribution. Proper installation and positioning are critical to ensure the valve functions correctly and integrates seamlessly into the system layout.

Technical parameters

Installation and connection

Installers should begin by identifying the correct location on the system, typically at high points where air tends to accumulate. The valve connects via 3/4 inch inlet and 3/8 inch outlet ports, both of which require secure threading. Before tightening, ensure the pipe threads are clean and free of debris to prevent leaks. A sealing compound or PTFE tape is recommended for a watertight seal. After installation, verify the valve orientation to ensure the air release mechanism is correctly aligned with the system flow direction.

Common installation errors include incorrect orientation, insufficient sealing and failure to check the valve for blockage before commissioning. Always inspect the valve visually for damage and confirm that the internal components move freely. A final check of the system pressure and flow rate helps identify potential issues early.

Compatibility and accessories

This automatic air vent valve is designed to integrate with standard heating and plumbing systems. It is compatible with copper, steel and polyethylene piping systems, provided the connection sizes match. When installing, ensure the system includes appropriate pressure relief mechanisms and isolation valves for maintenance access. No additional accessories are required for basic operation, though installers may choose to add protective covers or insulation depending on the environment.

Technical background for designers

The valve operates using a float mechanism inside the chamber. As air accumulates, the float lowers, allowing air to escape through the vent port until the water level rises and the float seals the opening. The CW617N brass body offers good thermal conductivity and durability, while the stainless steel internal components resist corrosion and wear. These properties make the valve suitable for long-term use in both domestic and industrial applications. The system integration should account for the valve’s maximum discharge pressure of 6 bar to avoid overloading the vent mechanism.

Designers should consider the valve’s placement relative to other components such as expansion tanks, circulation pumps and filters. The valve’s performance is influenced by the overall system pressure and fluid temperature. Regular monitoring of the system’s air content and flow characteristics helps optimise the valve’s efficiency and extend its service life.

Service and operation

During normal operation, the valve requires minimal maintenance due to its self-regulating design. However, periodic inspections are recommended to ensure the internal float mechanism remains unobstructed and the vent port is free from debris. In environments with high particulate content, a filter upstream of the valve may be beneficial to prevent clogging. There are no scheduled service intervals specified in the technical documentation, but any signs of reduced air release or unusual noise should prompt a closer inspection.

Frequently asked questions

Can this valve be used in a closed-loop heating system?
Yes, it is suitable for closed-loop systems operating within the specified pressure and temperature ranges. Ensure the system includes a means of pressure regulation and expansion to prevent overpressure.

Is it possible to install this valve vertically or horizontally?
The valve can be installed in either position as long as the vent port is oriented correctly for air release. Always follow the manufacturer’s orientation guidelines during installation.

What should be done if the valve stops releasing air?
Inspect the valve for blockage or damage. If the internal components are obstructed, disassemble the valve and clean the chamber. If the issue persists, contact the manufacturer for further assistance.

Can this valve be used with glycol-based fluids?
It is compatible with glycol-based fluids provided the concentration and temperature remain within the operating limits. Consult the technical data sheet for specific compatibility details.
