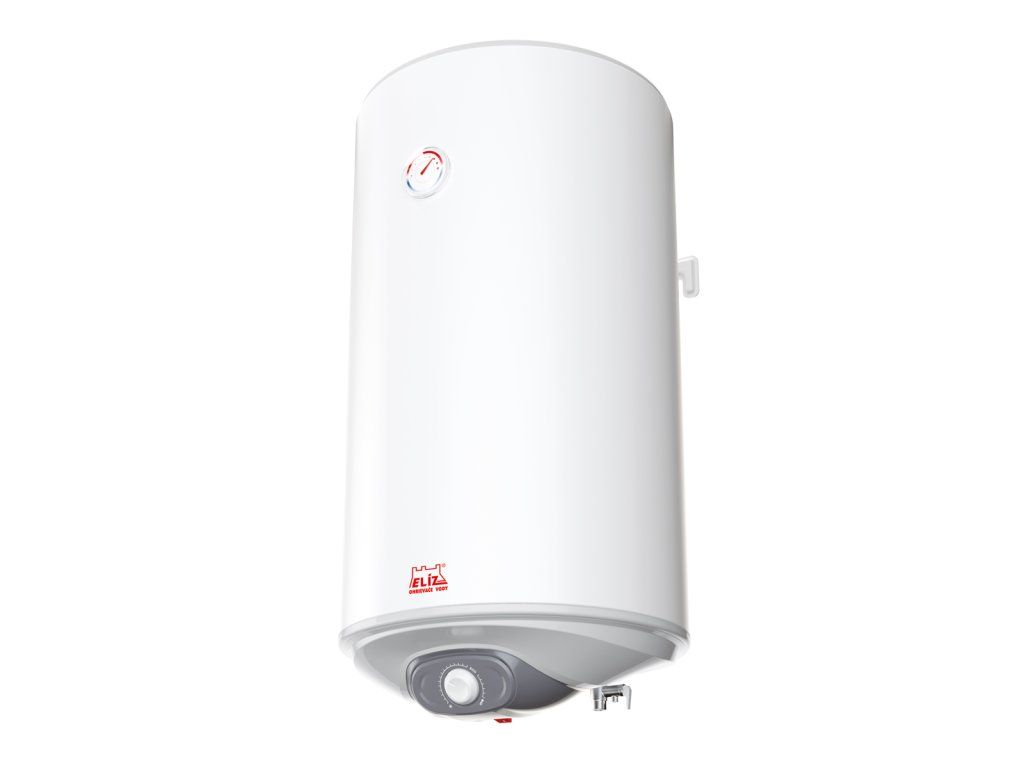

ELIZ EURO 120

Product detailed description

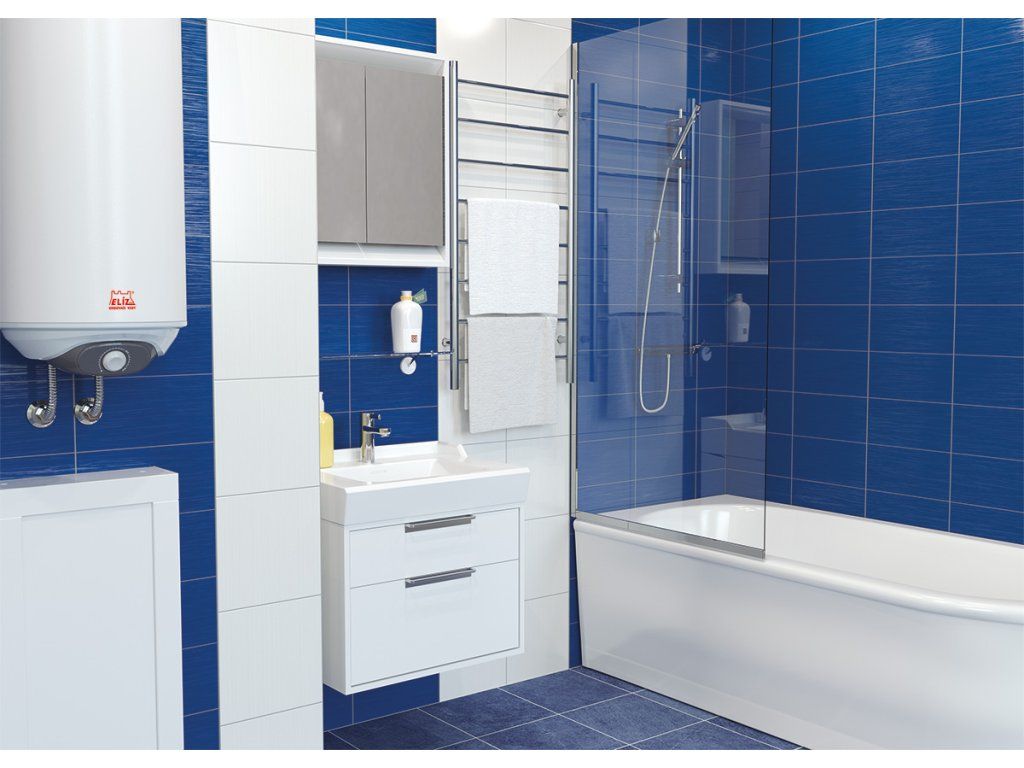

Electric water heaters like the ELIZ EURO 120 are commonly used in residential and commercial settings to provide on-demand hot water for domestic applications such as showers, sinks, and dishwashing. These units are typically installed in utility rooms, basements, or behind kitchen cupboards, where space is limited and wall mounting is preferred. They integrate into standard plumbing systems and are often selected for their compact design and ease of installation. Installers must consider the available electrical supply, water pressure, and thermal insulation requirements to ensure optimal performance and safety.

When selecting a water heater for a specific project, factors such as tank size, power rating, and installation method play a crucial role. The ELIZ EURO 120 is suitable for medium-sized households or small commercial premises requiring a reliable supply of hot water. It is particularly appropriate for systems where vertical space is limited and wall mounting is necessary. The unit supports multiple outlets and is designed to operate within standard domestic water pressure ranges. Installers should also evaluate the need for additional components such as expansion vessels or safety valves depending on local regulations and system configuration.

Technical parameters

type	EURO 120
volume	120 lit.
power	2000 W
voltage	230 V
current	10 A
electrical protection	IP 24
water connection	1/2 inch
maximum tank pressure	6 bar
heating time from 12 to 65°C	3.8 hours
heat losses	1.35 kWh/24h
wall mounting	yes
safety fuse	yes
weight	33 kg
product dimensions	W / H / D: 462 x 1170 mm
tank warranty	5 years
product warranty	2 years
EAN	3800035731873
Code	ELZ_3306
Brand	ELIZ

The technical specifications of the ELIZ EURO 120 are essential for determining its suitability for a given installation. The 120L capacity ensures sufficient hot water storage for typical household use. The 2000W power rating allows for rapid heating, while the 230V supply voltage is standard for single-phase electrical systems. The IP24 protection class ensures basic resistance to dust and water splashes, making it suitable for indoor use. The 1/2 inch water connection is compatible with standard plumbing fittings. The maximum working pressure of 6 bar indicates the unit’s ability to handle typical domestic water pressures, and the 3.8-hour heating time from 12°C to 65°C helps in planning system response times. The 1.35 kWh/24h heat loss figure is useful for assessing long-term energy consumption and efficiency.

Installation and connection

To install the ELIZ EURO 120, begin by ensuring the mounting surface is solid and capable of supporting the unit’s weight of 33 kg. Secure the wall bracket provided with the heater using appropriate fasteners, then lift the unit into place and attach it to the bracket. Connect the cold water inlet and hot water outlet using 1/2 inch threaded fittings. Ensure all connections are tightened properly and sealed with plumber’s tape to prevent leaks. The electrical connection requires a dedicated 230V, 10A circuit with proper earthing. Verify that the power supply meets the unit’s requirements and that the circuit breaker is correctly rated. After installation, perform a pressure test to check for leaks and confirm that the safety valve and expansion vessel (if required) are functioning correctly. Common installation errors include incorrect electrical wiring, poor sealing of pipe connections, and failure to secure the unit properly to the wall.

Compatibility and accessories

The ELIZ EURO 120 is compatible with standard domestic plumbing systems and can be integrated with thermostatic mixing valves, circulation pumps, and pressure-reducing valves if needed. For installations in areas with low water pressure, a booster pump may be necessary. The unit is supplied with a wall bracket, a metal safety valve with a check valve, and a built-in thermostat. Additional accessories such as expansion vessels or isolation valves may be required depending on local regulations and system design. There are no alternative or related products listed for this model.

Technical background for designers

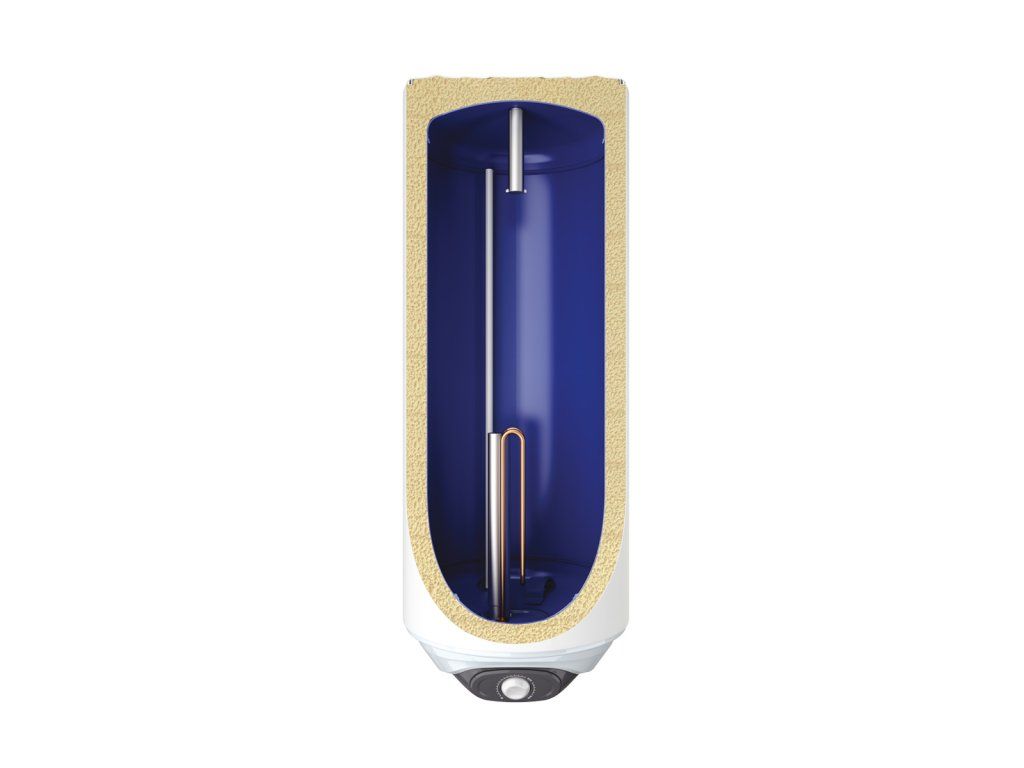

The ELIZ EURO 120 operates using an electric heating element that transfers thermal energy directly to the water stored in the stainless steel tank. The tank is coated with zirconium glaze to resist corrosion and extend its lifespan. The 33 mm thick polyurethane insulation minimizes heat loss and improves overall efficiency. The unit is designed to function within standard domestic water pressure ranges and is equipped with a safety valve to release excess pressure in case of overpressure conditions. The ECO mode reduces the setpoint to 55°C, lowering energy consumption while maintaining sufficient hot water for most applications. The integration of two magnesium anodes provides sacrificial protection against internal corrosion, further enhancing the durability of the tank. Designers should consider the unit’s thermal losses, installation space requirements, and electrical load when planning the system layout.

Service and operation

Regular maintenance of the ELIZ EURO 120 includes inspecting the electrical connections for signs of wear or overheating and checking the integrity of the tank and its insulation. The anodes should be inspected periodically and replaced if significant corrosion is observed. The safety valve should be tested annually to ensure it opens and closes correctly under pressure. The thermostat should be verified for accuracy using a calibrated thermometer. No specific service intervals are provided in the brief, so maintenance should be performed according to local regulations or manufacturer recommendations. During operation, ensure that the unit is not subjected to excessive pressure or temperature fluctuations that could affect its performance or safety.

Frequently asked questions

Can the ELIZ EURO 120 be used in a system with a circulation pump?
Yes, the unit can be integrated with a circulation pump to maintain hot water temperature in long pipe runs. Ensure the pump is compatible with the unit’s pressure and flow requirements.

Is the ECO mode sufficient for most domestic applications?

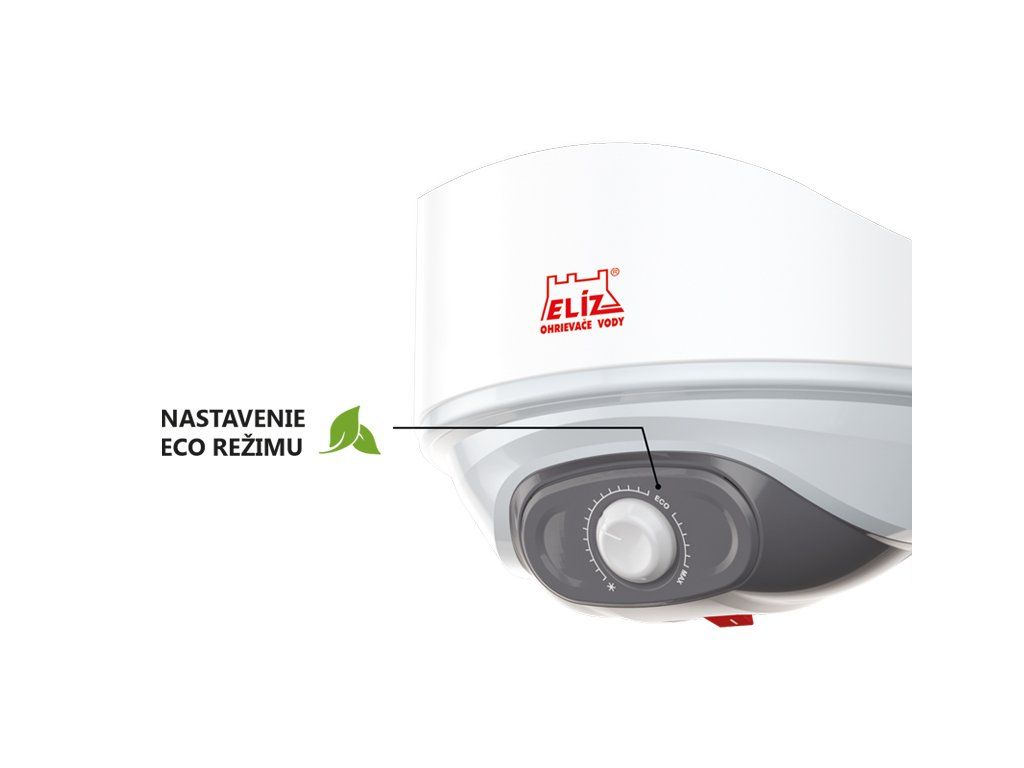

Yes, the ECO mode sets the water temperature to 55°C, which is suitable for most household uses while reducing energy consumption and heat loss.

Can the unit be installed in a location with low water pressure?
Yes, but a booster pump may be required to ensure adequate water flow and pressure for the heater to function efficiently.

How does the double anode system protect the tank?
The two magnesium anodes provide sacrificial protection against internal corrosion, significantly extending the tank’s lifespan by reacting with corrosive elements in the water instead of the tank itself.
